tDynamo Hand Held or Mounted MagStripe, EMV Chip, and Contactless Reader

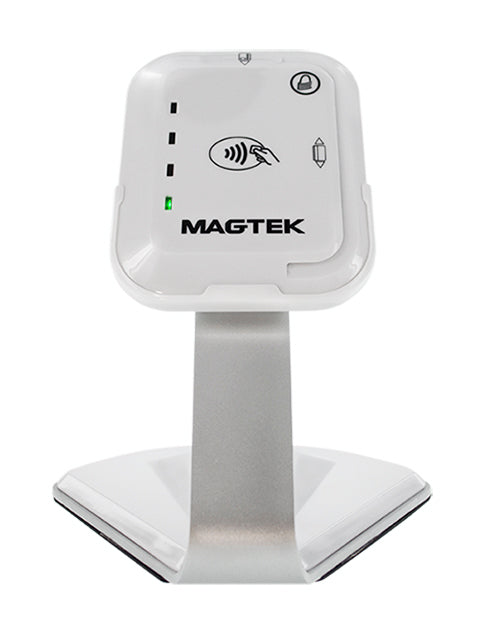

Get a Stand for your Terminal:
Stand for tDynamo 2107982
Windows plug & play
tDynamo connects easily via USB interface for automatic configuration.
Enhanced user interface
tDynamo is a versatile reader in a sleek design. With all of the payment methods in the market today, tDynamo delivers magnetic stripe, chip card, and contactless in a small form factor. Now you can accept classic plastic to mobile wallets and just about everything in between.
Payment Methods
| Magstripe Secure Card Reader Authenticator Triple Track (TK1/2/3); Bidirectional Read ISO 7810, 7811; AAMVA Driver Licenses |
YES 4 ips to 60 ips |
| EMV Chip Contact EMVCo L1 And L2 ISO/IEC 7816 |
YES Terminal type 21 and 24 |
| EMV Contactless EMVCo L1 And L2, EMV Level 1 /C-2/C-3/C-4/ ISO/IEC 14443 (Type A/B) |
YES |
| NFC Contactless / Mobile Wallets ISO/IEC 14443 | (Type A, Type B) C-6 D-PAS®, PayPass™ PayWave®, ExpressPay®, Apple Pay® |
YES |
Reliability and Operation
| MSR / SCRA Swipes | 200k |
| EMV Insertions | 300K |
| Operating System | iOS, Android and Windows |
| CPU and Memory | Cortex M3, 1 MB memory |
| Status Indicators |
Wireless (Blue) Status LED (Red/Green/Amber) |
| Device Compatibility | iPad, iPhone, Android phones |
General
| Connection Method |
USB Type C USB 2.0 |
| Wireless (Frequency 2.4 MHz) |
Certain standard wireless |
| Interface | USB Type C with high current USB 2.0 com, Wireless |
| Display | NA |
| Secure Key Pad | NA |
| Optional Accessories | Optional charging stand |
| Web Services | Magensa Services |
Electrical
| Charging |
Rechargeable USB 2.0 charge Chargin Time:4.2 Hr |
| Battery | Li-ion Polymer |
| Current and Power |
Power via USB or Battery. USB: 5 VDC |
Security and Certifications
| Compliance | |
| EMV L2 Contact | Click here. |
| FCC, CE, UL | YES |
| Data Protection 3DES Encryption RSA For L2 Transaction DUKPT Key Management MagneSafe Security Architecture Unique, Non-Changeable Device Serial Number |
YES |
| Tamper | Evident / Resistant |
Mechanical
| Dimensions L x W x H or L x W x D |
3.94 x 3.25 x 0.61 in. (100 x 82.5 x 15.5 mm) |
| Weight | 3 oz. (133.4 g) |
| Mount/Stabilizer |
Optional charging stand |
Environmental
| Operating Temp | 32°F to 113°F (0°C to 45°C) |
| Operating Humidity Non-Condensing | 10% to 90% |
| Storage Temp | -14°F to 113°F (-10°C to 45°C) |
| Storage Humidity Non-Condensing | 10% to 90% |
